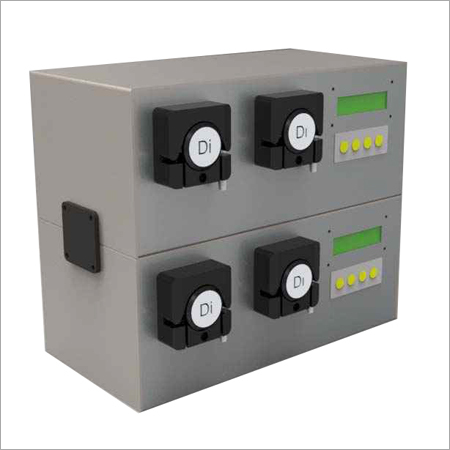

Channel Low Flow Peristaltic Pump

Channel Low Flow Peristaltic Pump
Channel Low Flow Peristaltic Pump
Product Code : D4X-01
Brand Name : DESIGNINNOVA
Product Description

Channel low flow peristaltic Pump

Acuflo D4X-01 is a high performance, fully programmable, variable speed four independent channel low flow, four roller peristaltic pump heads which delivers consistent and repeatable flow rates. The pump provides flow rates from 0.001 to 20 ml / min per channel. The pump utilizes high-torque hybrid step motor as drive delivering precise flow rates. The front control panel has Intuitive user interface, easy setup, with fewer key i.e. speed control, direction control start / stop. The suitable tube having wall Thickness : 0.8 -1.0, Inner Diameter : < 3.0 mm

Application:

  • Fluids sampling or testing
  • Laboratory
  • Industrial /process
  • Precise dosing in biotech & pharmaceutical
  • Dispensing and filling fluids
  • Other fluids transfer

Specifications:

Channels

four independent programmable channels

Speed

0.1 to 50 rpm, reversible

Speed precision

+ 0.1 RPM

flow rate

0.001 to 20ml / min

Set point control

digital user interface

Control

Start/stop and cw/ccw control

Pump head

Quick-release sprung tube clamps with Precision-machined four-roller rotor for Smooth, precise flow

Interface

Serial, USB (optional)

Power supply

AC 95- 256 AC 50/60 Hz

Power consumption

< 50 W

Operating condition

Temperature 0 to 55° C

Relative humidity

< 80%

Drive weight

5.3 kg

IP rating

IP 31

Dimensions (L x W x H)

300 mm x 175 mm x 250 mm
